C-Channel

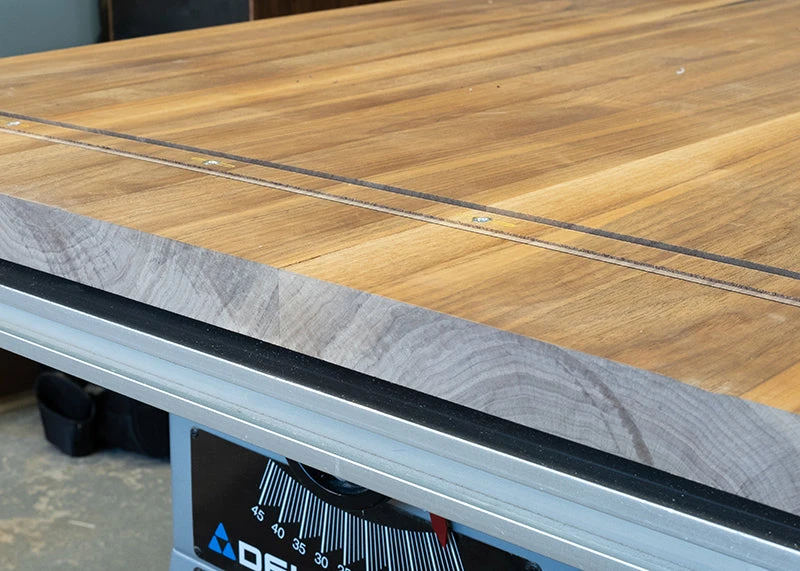

Stop your table or slab from moving!

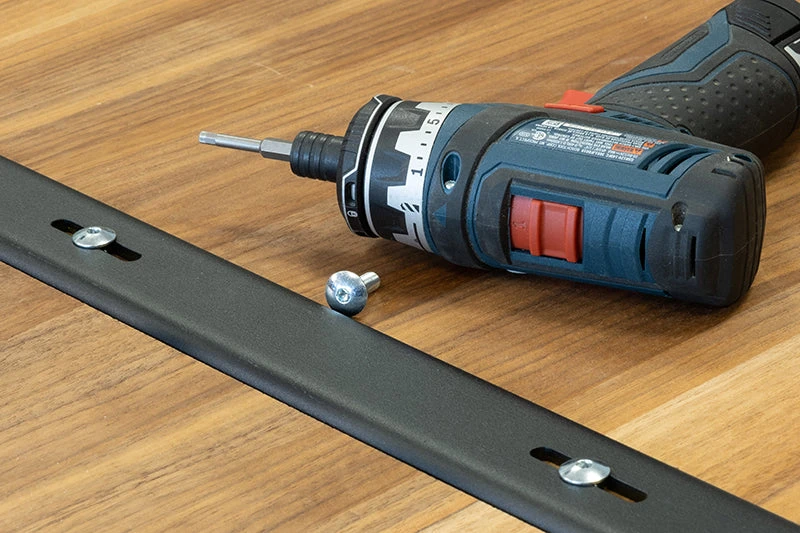

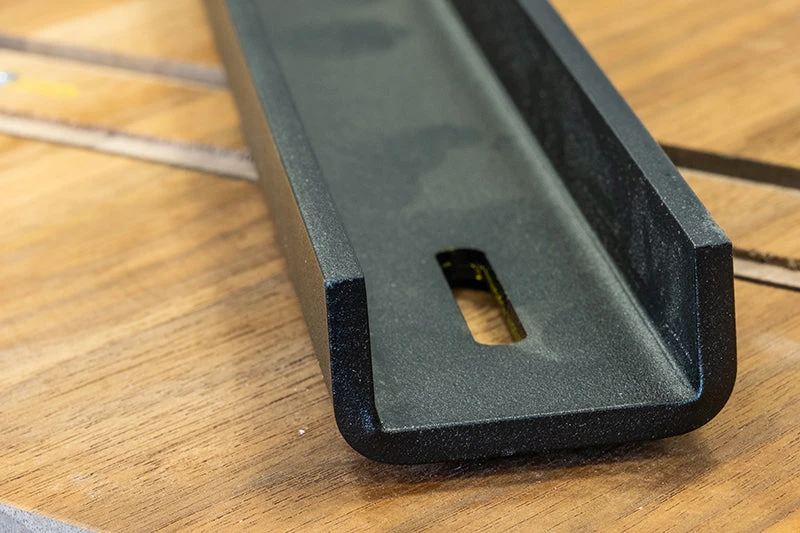

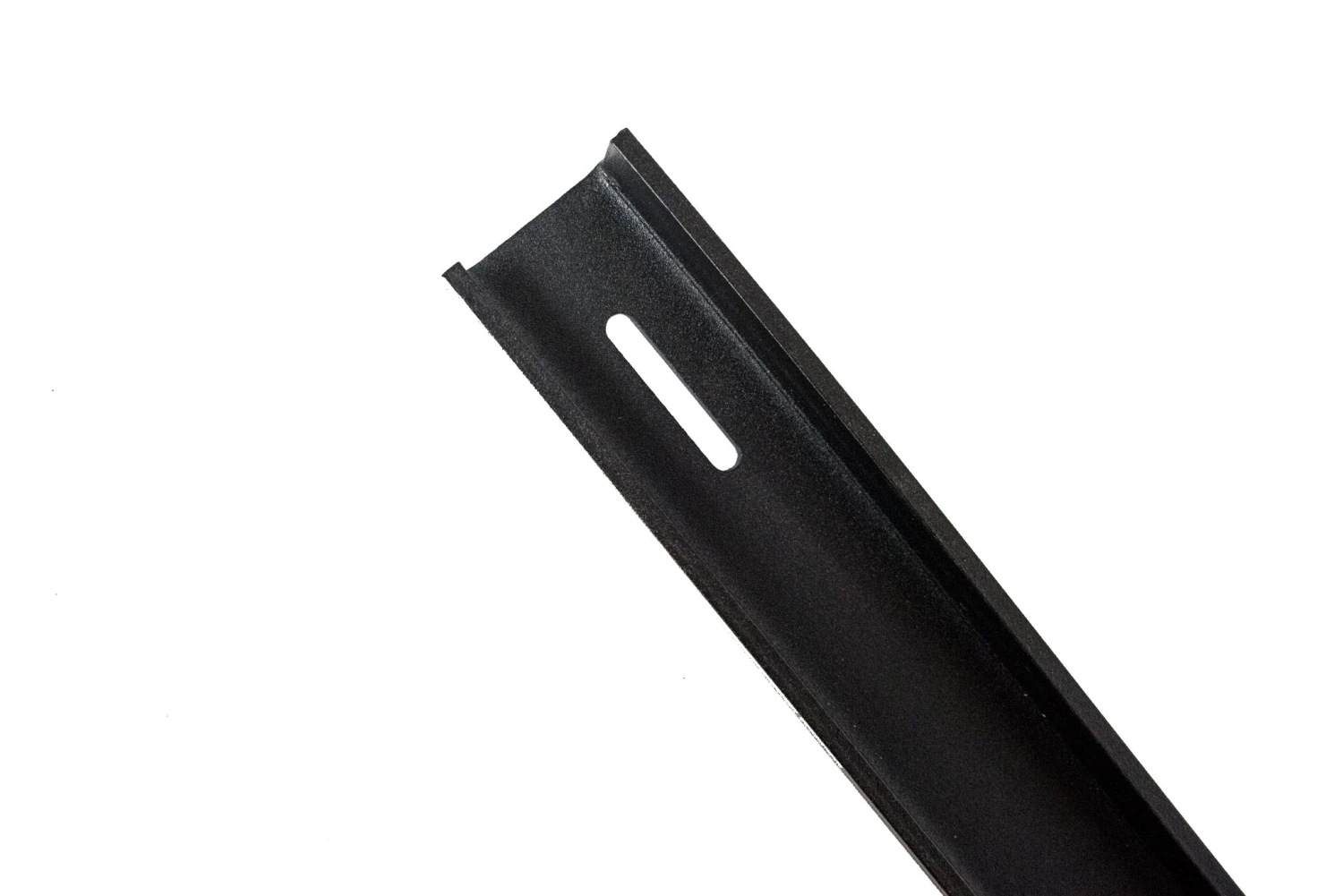

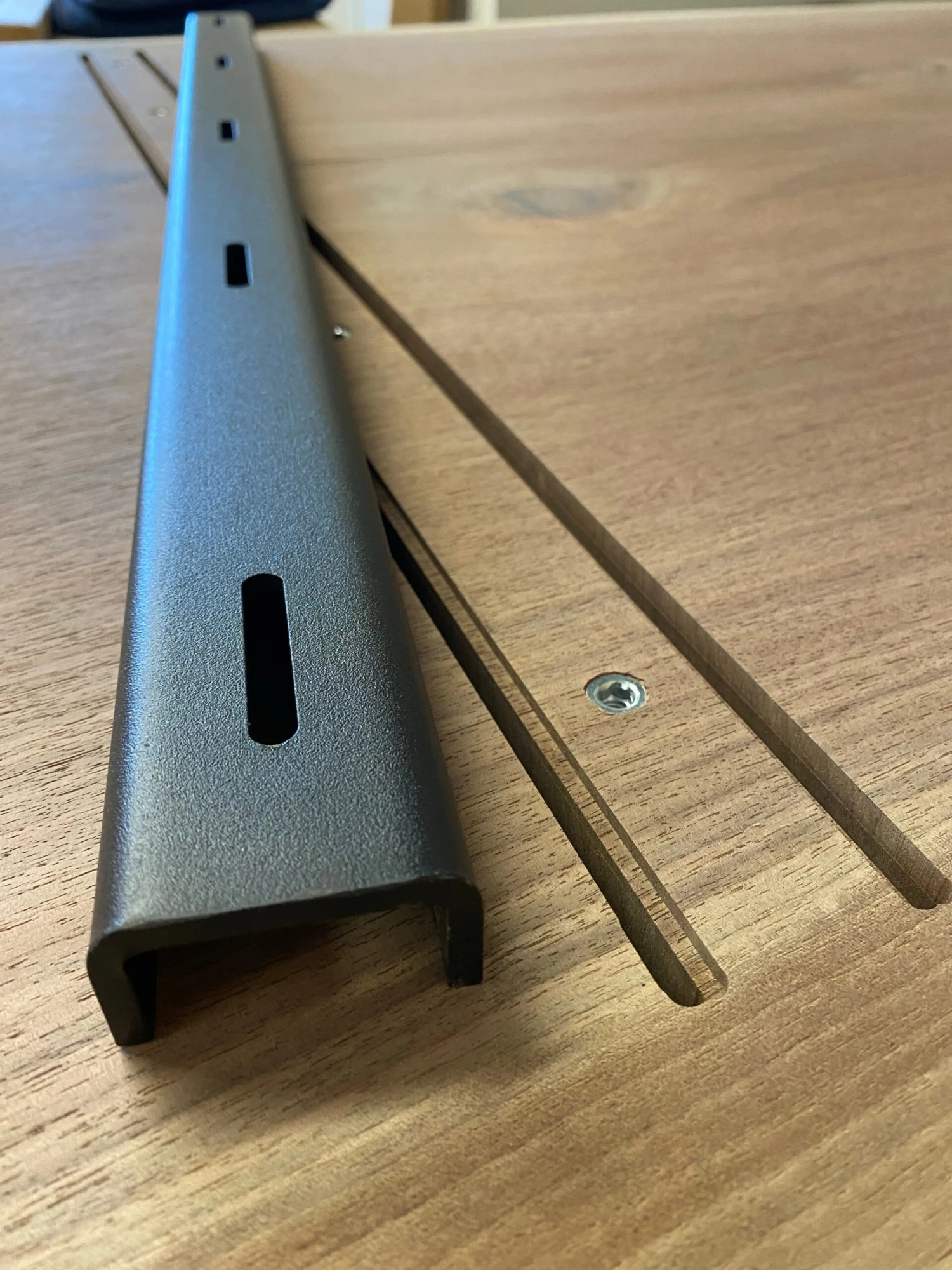

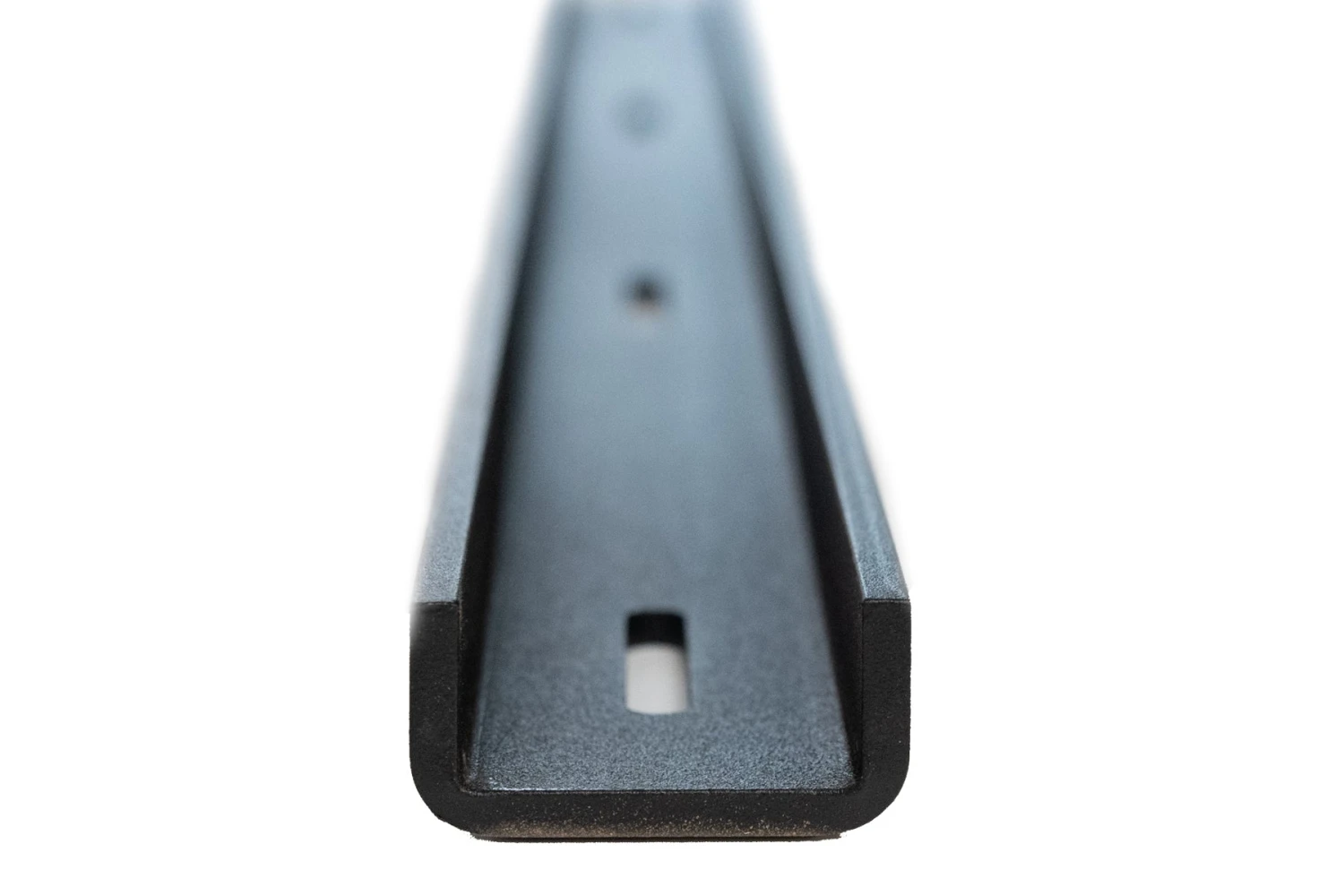

Canadian manufactured C-Channel using high strength steel. The strength is achieved by using flat bar that is then folded into the C shape. Slots are laser cut into the channel at a length of 1-3/4″ per slot. This is to allow a large amount of expansion and contraction.

The channel has been powder coated black to give a hard wearing finish.

Dimensions

• Total Width – 2”
• Total Depth -1”
• Wing Depth – 3/4”
• Slot size – 1-3/4″

Recommended Hardware and Fasteners

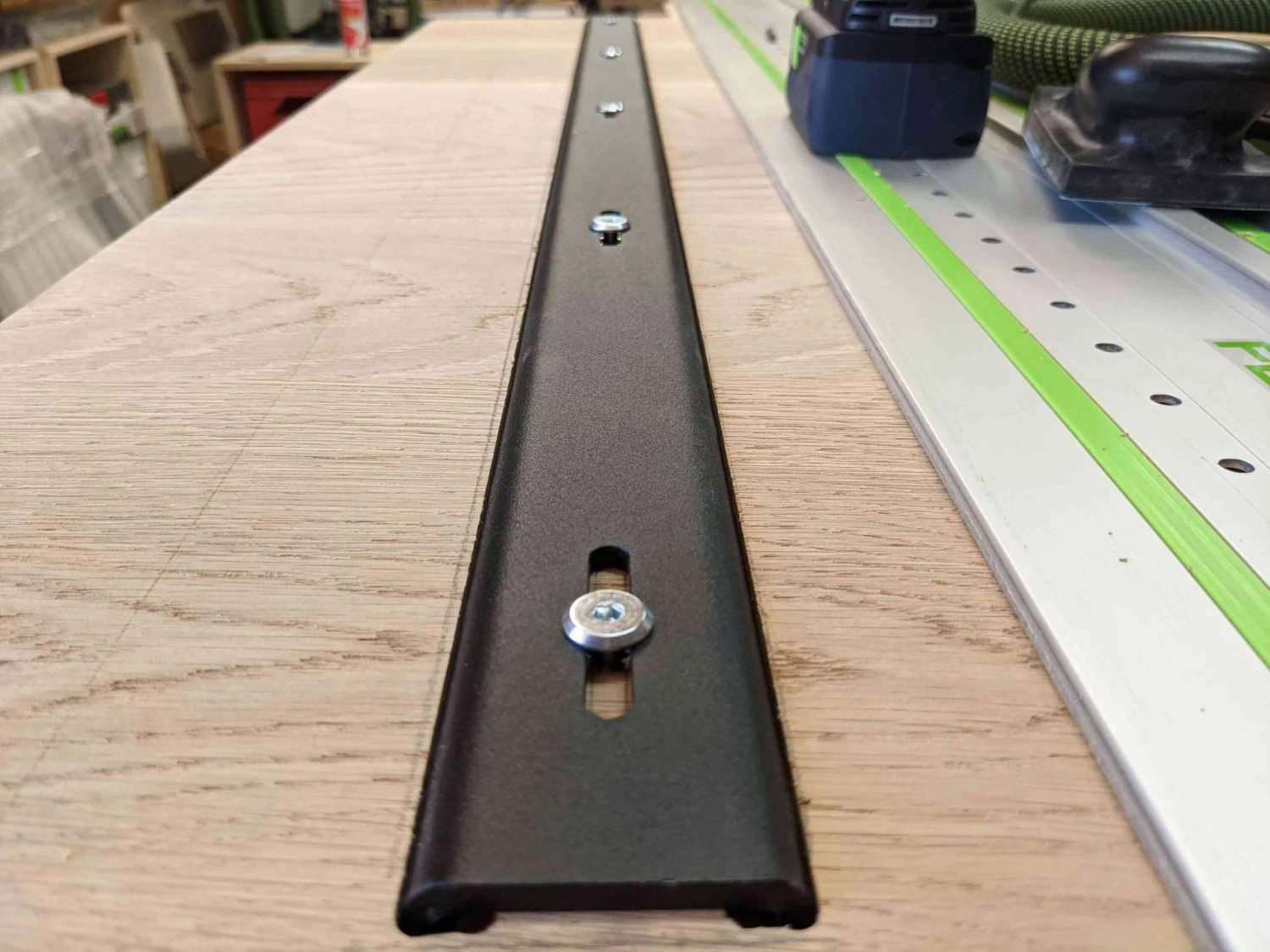

• Rampa Threaded Insert & Bolts
• Famag Brad Point Bits (10mm or 10.5mm)

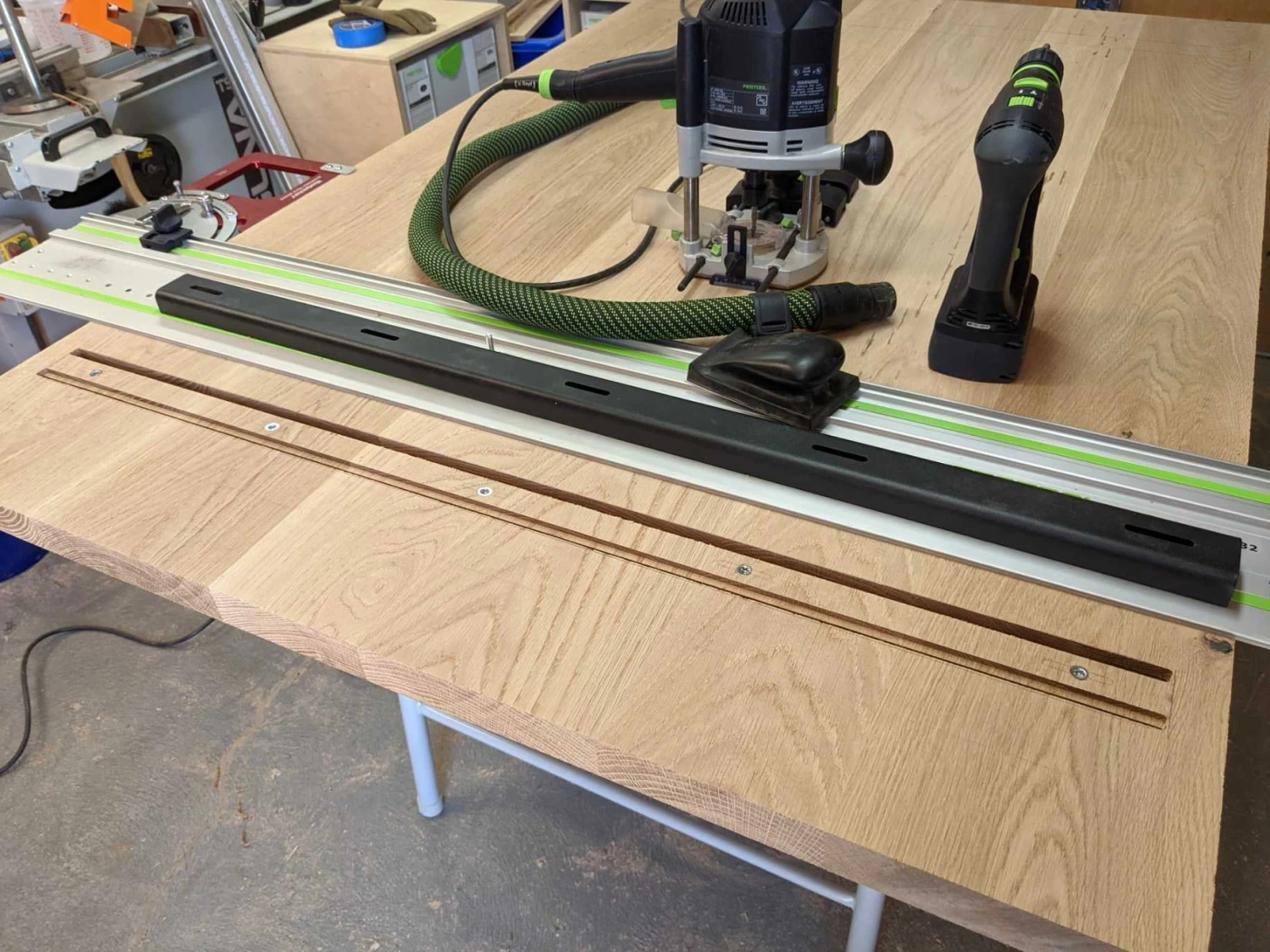

• C-Channel Jig
• Whiteside 5/16″ Straight Bit
• Hex Driver Bit
• Allen Key

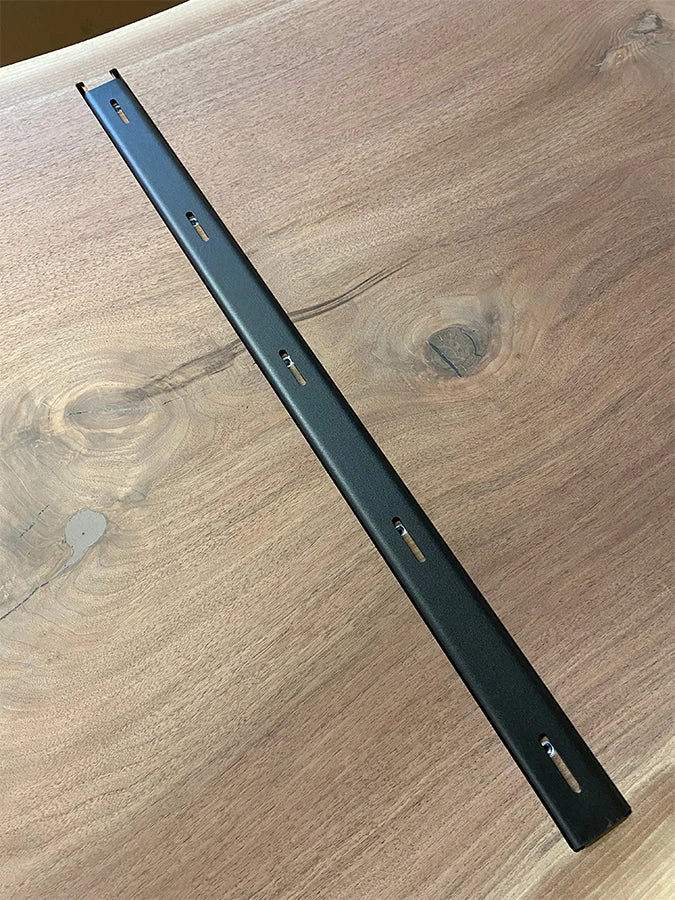

Slots per Length

• 20″ – 3
• 31″ – 4
• 35″ – 5
• 40″ – 5
• 52″ – 7
