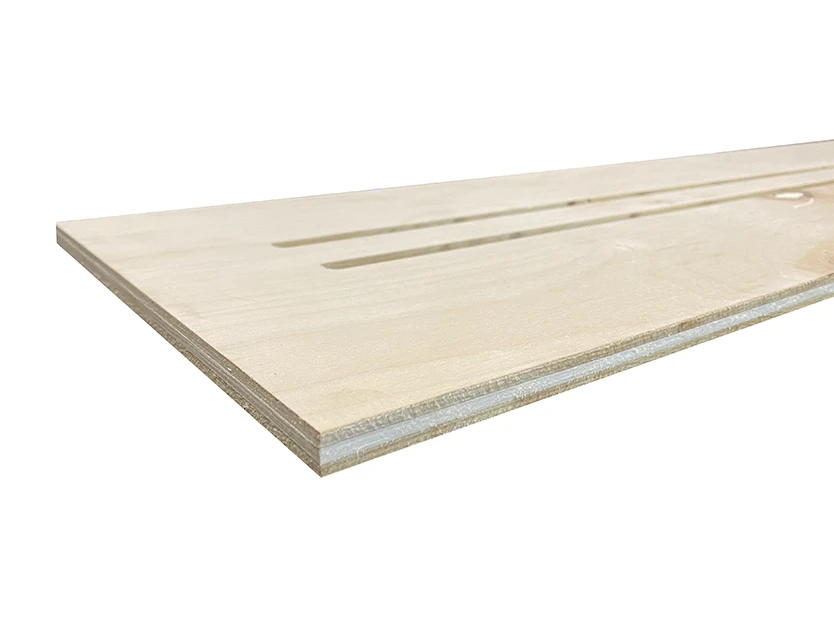

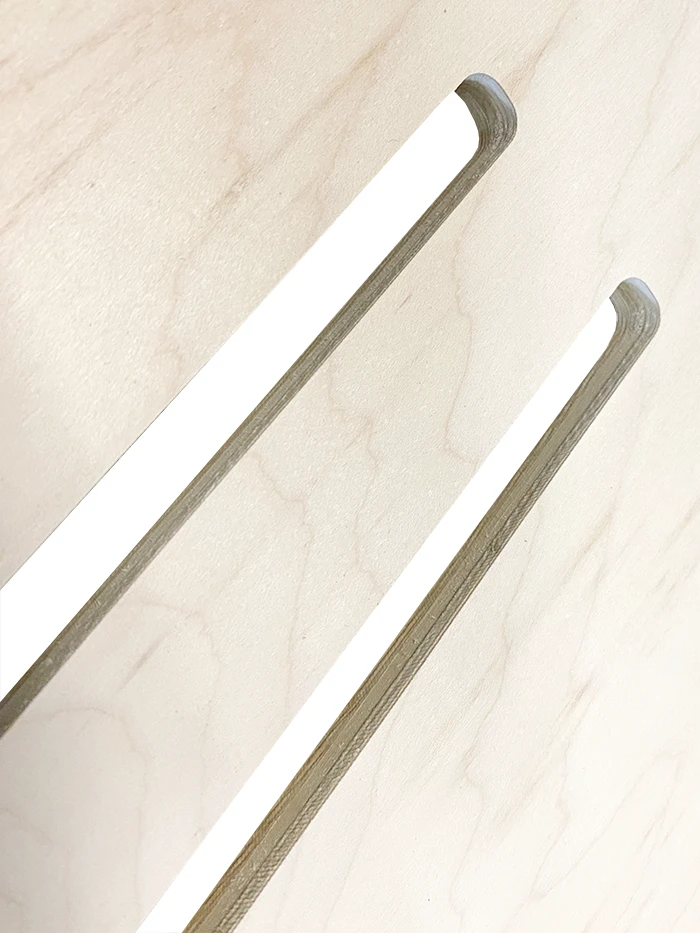

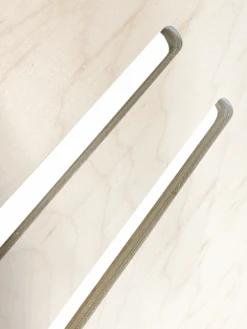

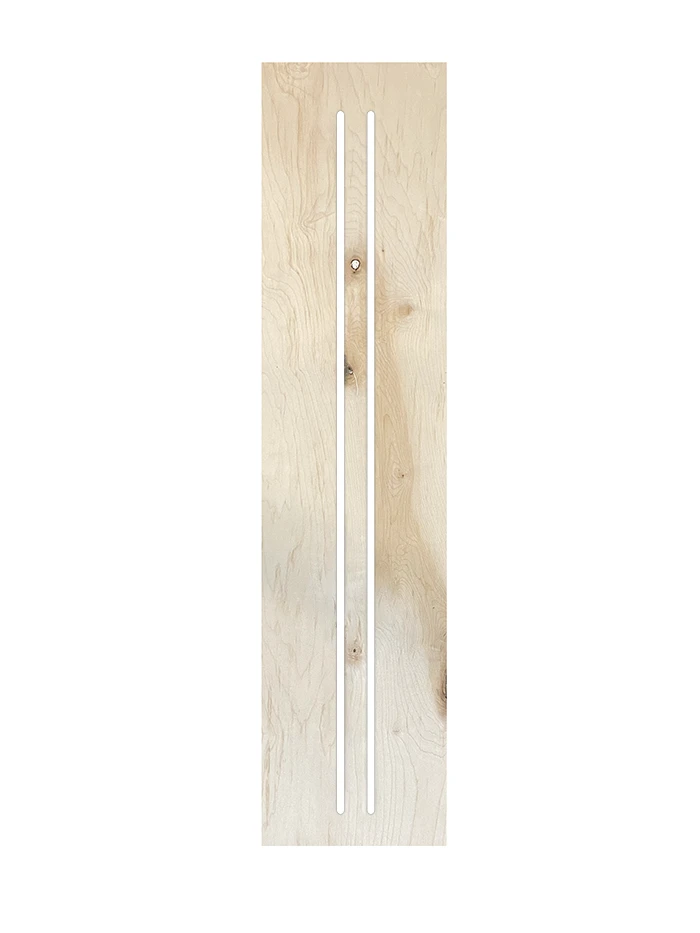

C-Channel Jig

No measuring needed!

CNC cut plywood jig to easily install your C-Channel table stiffeners. Simply clamp down and use as a template guide with a 1/4″ spiral bit & 1/2″ (Outside Diameter) bushing.

Recommended Router Bit for C-Channel Jig

• 1/4″ Spiral Bit  – RU2100

Recommended Hardware and Fasteners for C-Channel

• Rampa Threaded Insert & Bolts
• Famag Brad Point Bits (10mm or 10.5mm)
• Whiteside 5/16″ Straight Bit
• Hex Driver Bit
• Allen Key

Slots per Length

• 31″ – 4
• 35″ – 5
• 40″ – 5
• 52″ – 7

Specifications

Dimensions

• Total Width – 10″
• Total Length – 48”
