Festool – CXS 12

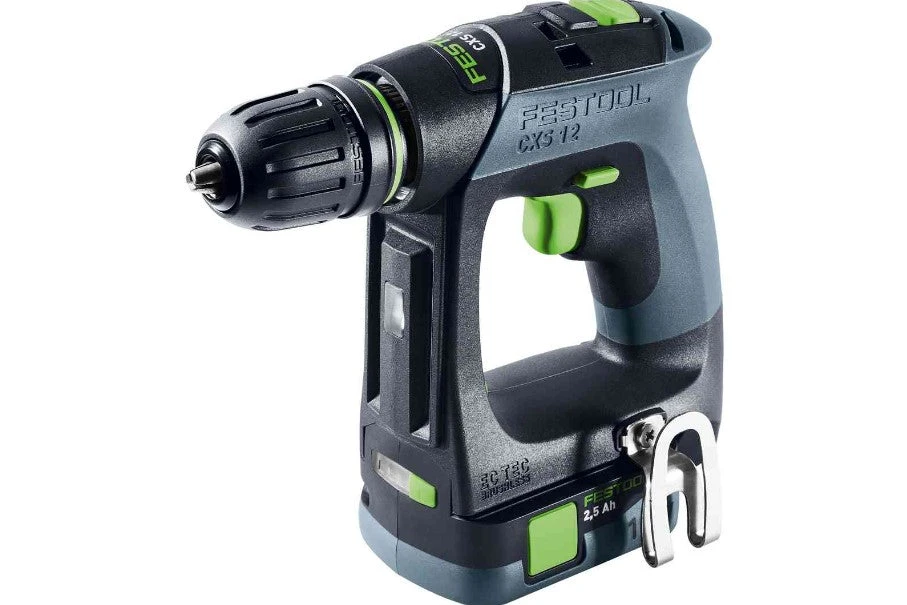

Cordless Drill CXS 12 2.5 US

Light, compact and impressively powerful with more torque than the previous generation. The CXS 12 compact drilldriver is your go-to everyday driver for common tasks providing plenty of power in the most compact format. The ergonomic C shape facilitates precise working through the grip position in the drilling and driving axis. A number of available chuck attachments easily tackle the most difficult applications—even in narrow spaces or corners. The FastFix interface and the CENTROTEC system ensure fast bit changes. The compact battery pack is compatible with all chargers in the 18-volt cordless range. Clever details, like the bit holder, the LED light control and the Systainer³ make the CXS 12 a compact, multitalented device for every shop or site.

Strengths and benefits

• Impressive ergonomics and low weight for easy drilling and fastening
• The compact, ergonomic shape makes work easier, even in tight spaces
• Impressive performance: Thanks to the extremely powerful, brushless and long-lasting EC-TEC motor
• The ergonomic C-shape of the handle puts the user more in line with the bit for more precise work and less fatigue

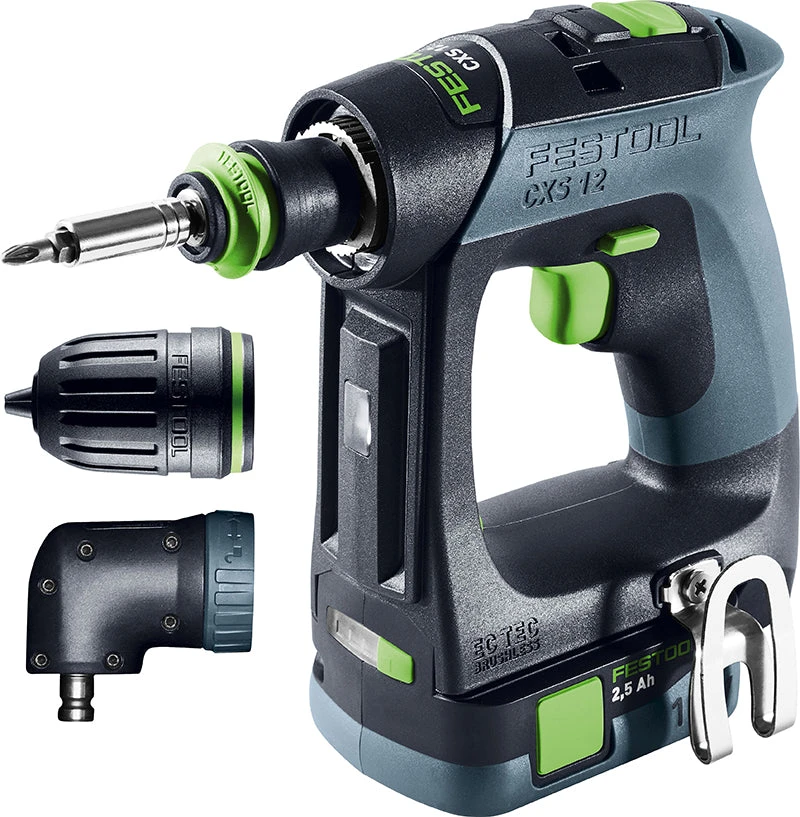

• Quick, tool-free conversion to drilling, driving, angular drilling and angular driving, thanks to the FastFix interface
• Numerous attachments for a variety of applications. All attachments for the current 18 V line are compatible with the CXS 12
• The depth stops and eccentric adapter enable depth-limited screwdriving close to edges
• High-quality lithium-ion battery with work piece-friendly rubber coating, charge indicator and 2.5 Ah for a long life included with the CXS 12. Compatible with all chargers in the Festool 18-volt cordless line

Technical Data

• Battery voltage: 10.8V
• Gears: 2
• Idling speed, 1st gear / 2nd gear: 0-470 RPM / 0-1600 RPM
• Drilling diameter, wood / steel: 1-3/8″ (35mm) / 3/8″ (10mm)
• Torque setting 1st gear: 9.7 in-lb (1.1Nm) – 70.8 in-lb (8Nm)
• Torque setting 2nd gear: 3.5 in-lb (0.4Nm) – 20.4 in-lb (2.3Nm)
• Maximum torque, wood / steel: 150.5 in-lb (17Nm) – 265.5 in-lb (30Nm)
• Chuck range: 1/32″ – 3/8″ (1-10mm)
• Battery capacity: 2.5Ah
• Weight: 1.54lb (0.7kg)

Includes

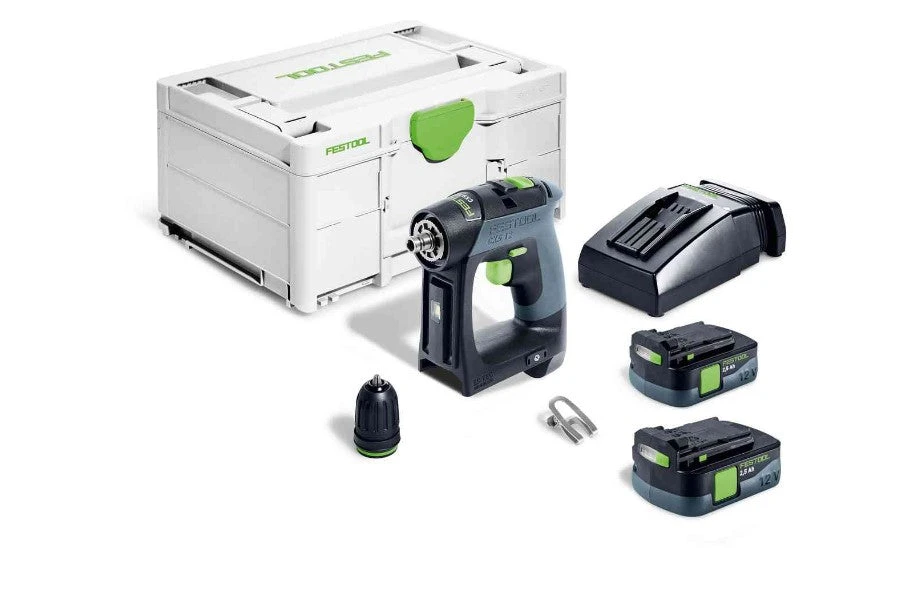

CXS 12 2.5-Plus (576868)

• 2 x BP 12 Li 2.5 C battery pack
• Rapid charger TCL 6
• FastFix keyless chuck 3/8″ (10mm)
• Belt clip
• Systainer Sys³ M 187

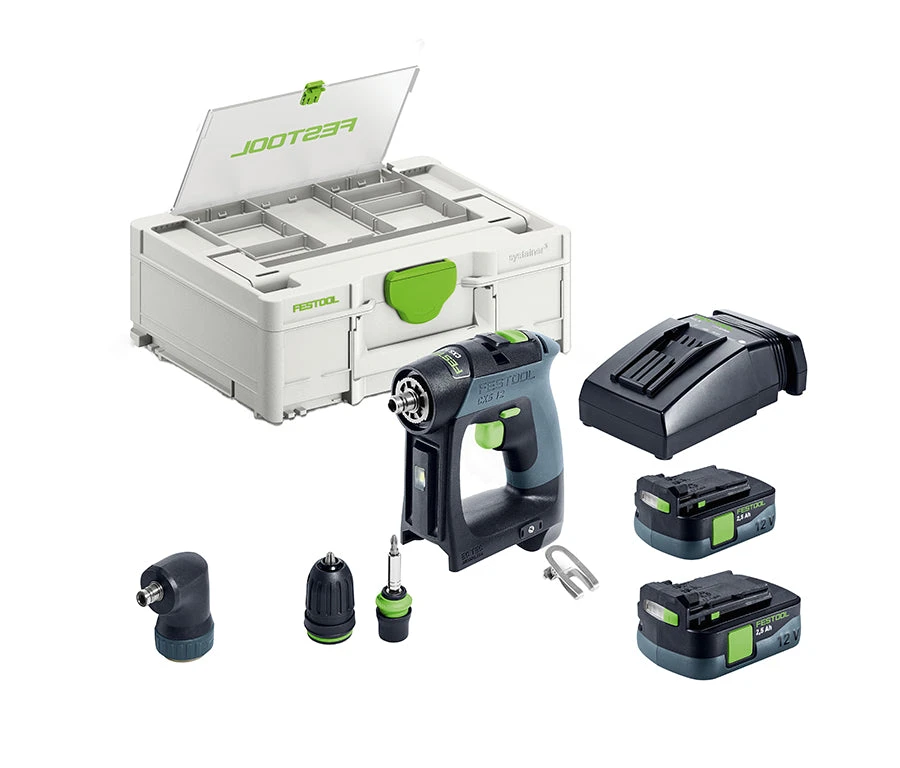

CXS 12 2.5-Set (576869)

• 2 x BP 12 Li 2.5 C battery pack
• Rapid charger TCL 6
• CENTROTEC BH 60 CE Imp magnetic bit holder
• CENTROTEC Chuck
• AN-XS elbow adapter (90° attachment)
• bit PZ 2
• FastFix keyless chuck 3/8″ (10mm)
• Belt clip
• Systainer Sys³ DF M 187 (with lid compartment)
