Festool – CXS 18

Cordless drill CXS 18

Light, compact and impressively powerful—the popular compact drill design with more torque and power now on the 18-volt platform. The 18-volt CXS/TXS 18 compact drill-driver is both small and powerful for most everyday applications. It is perfect also for narrow spaces or corners. Fast tool change with the tool-free FastFix interface and the CENTROTEC system. Practical and useful details, like the magnetic onboard bit holder, the adjustable LED light and the lid compartment Systainer³ make the CXS/TXS 18 a compact powerhouse you will reach for time and time again.

Strengths and benefits

• Impressive ergonomics and low weight for easy drilling and fastening
• The compact, ergonomic shape makes work easier, even in tight spaces
• Quick, tool-free conversion to drilling, driving, angular drilling and angular driving thanks to the FastFix interface
• The depth stops and eccentric adapter also enable depth-limited driving close to edges
• Numerous attachments for a variety of applications. All attachments of the current 18 V drills are compatible with the CXS 18 and TXS 18
• High-quality 18 V battery pack with protective rubber coating, LED charge indicator and capacity for long runtimes and long-life
• Longer runtimes per charge than conventional brushed motors and with longer life thanks to brushless EC-TEC motor
• The work area is optimally lit by LED lighting that can be activated by the trigger or turned on or off manually (in conjunction with a Bluetooth® battery pack, can also be controlled via the Work App)
• For left-handed people, the Work App can be used to reverse the right-hand/left-hand selector switch such that the switch position is aligned with your preferences, changing the rotation settings of the drill (only in combination with a Bluetooth® battery pack)

Technical Data

• Battery voltage: 10.8V
• Gears: 2
• Idling speed, 1st gear / 2nd gear: 0-470 RPM / 0-1600 RPM
• Drilling diameter, wood / steel: 1-3/8″ (35mm) / 3/8″ (10mm)
• Torque setting 1st gear: 9.7 in-lb (1.1Nm) – 70.8 in-lb (8Nm)
• Torque setting 2nd gear: 3.5 in-lb (0.4Nm) – 20.4 in-lb (2.3Nm)
• Maximum torque, wood / steel: 150.5 in-lb (17Nm) – 265.5 in-lb (30Nm)
• Chuck range: 1/32″ – 3/8″ (1-10mm)
• Battery capacity: 4Ah
• Weight: 1.54lb (0.7kg)

Includes

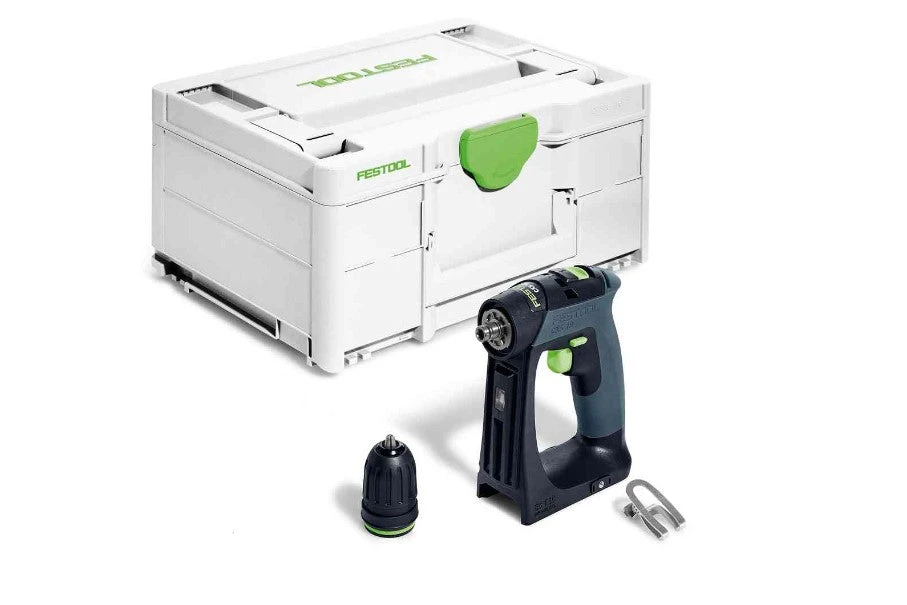

CXS 18 Basic (576887)

• FastFix keyless chuck 3/8“ (10 mm)
• Belt clip
• Systainer Sys³ M 187

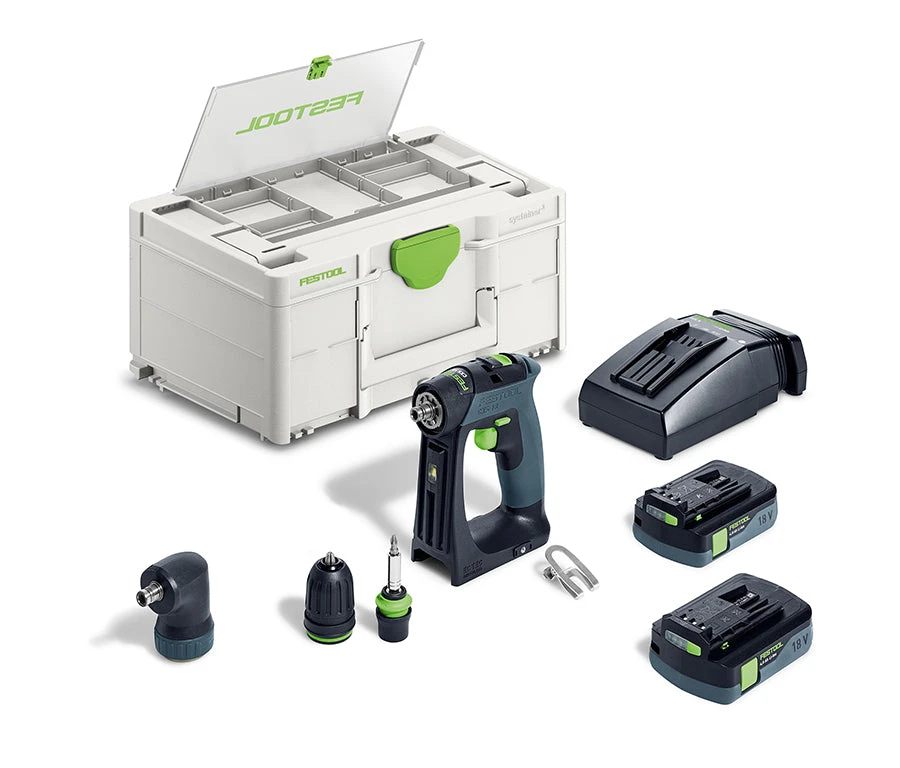

CXS 18 HPC 4.0 Set (576889)

• 2 x BP 18 Li 4.0 HPC-ASI battery pack
• Rapid charger TCL 6
• CENTROTEC BH 60 CE Imp magnetic bit holder
• CENTROTEC Chuck
• AN-XS right-angle adapter (90° attachment)
• Bit PH 2
• FastFix keyless chuck 3/8“ (10 mm)
• Belt clip
• Systainer Sys³ DF M 187 (with lid compartment)
