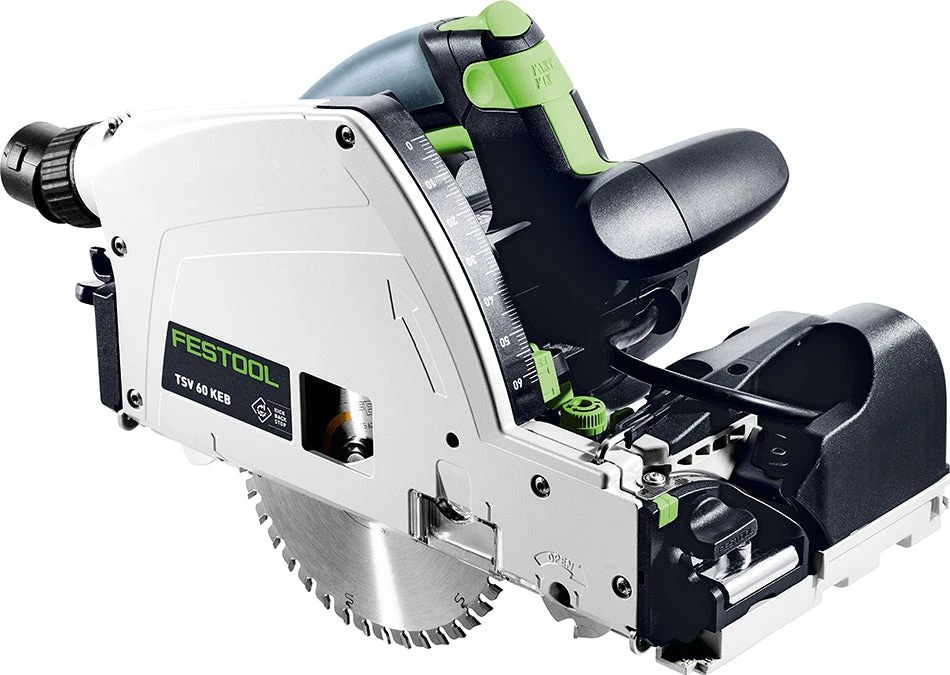

Festool – TSV 60 K Track Saw (Basic)

Plunge-cut saw TSV 60 KEB-F-Plus USA

576735

Since 1980, Festool tracksaws have been known for their reliable quality and absolute precision. Our objective: The perfect cut. With the TSV 60 K plunge-cut saw with scoring blade, we have achieved exactly that. Splinter-free cuts on both sides from the very first cut. Coupled with the built-in KickbackStop, which stops the blade in the blink of an eye to not only protect your work piece but also help minimize the risk of injury to your hands. Get the most from the saw with the ideal combination of Festool system accessories, your work can always be precise and customized to your standards, in the shop or on the jobsite. With the TSV 60 K, workshop-quality results can be replicated on the jobsite – as good as with a stationary machine.

Strengths & Benefits

• Splinter-free: The scoring blades ensures splinter-free cuts on both sides from the very first cut
• Long-lasting: Diamond scoring saw blade with very long service life for perfect cut quality, time after time
• Saw system: Comprehensive system with ideal accessories for perfect panel cutting

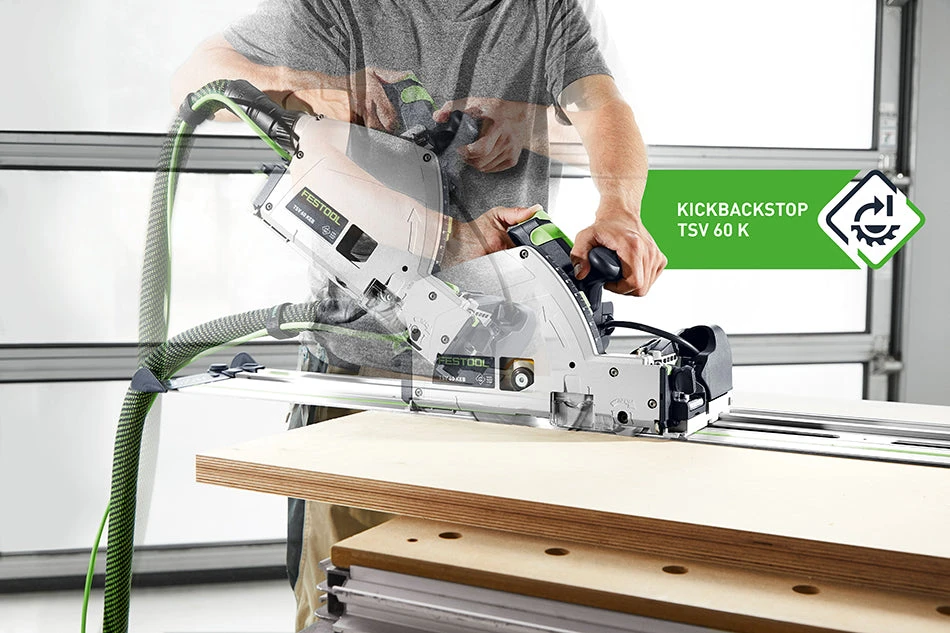

• Peace-of-mind: The unique KickbackStop helps to reduce the risk of injury caused by kickback during sawing or plunge-cutting into the work piece
• Versatile: 2-7/16″ (62 mm) cutting depth and can be combined with the FSK cross cutting guide rail or FS guide rail
• Perfect bevels: scoring blade matches the angle even on bevel cuts from 0° to 45°

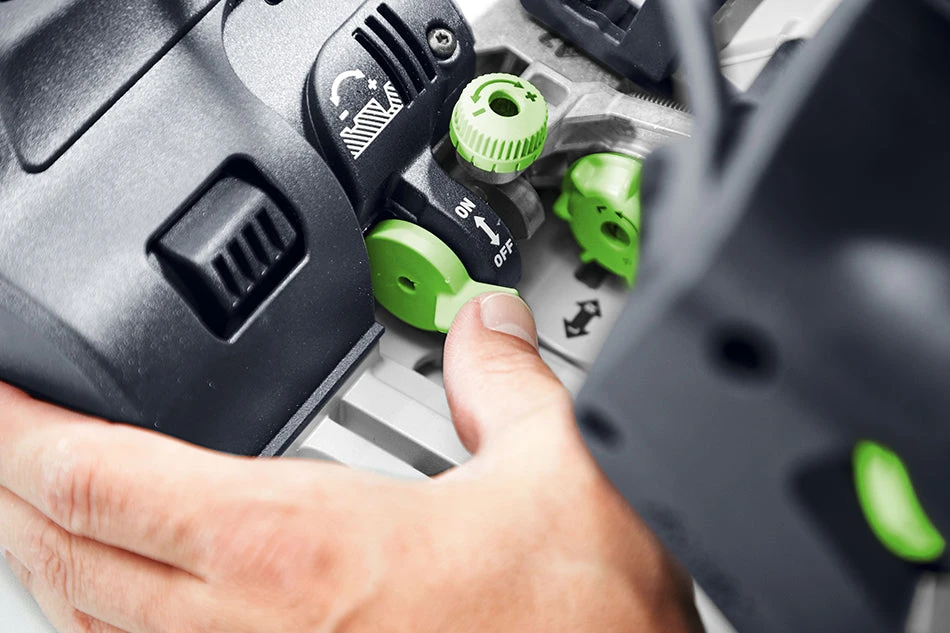

• Flexible: Both the scoring saw blade and the main saw blade can be manually activated and deactivated
• Convenient: The FastFix spindle stop on the main saw blade and the ability to stand on its side make
  changing the saw blade very simple, even with the scoring saw blade
• Constant: EC-TEC motor, in combination with the thin kerf saw blades, ensures constant and consistent power for perfect cuts

Technical Data

• Power consumption (circular saw/scorer): 1500/190 watt
• Idle engine speed (circular saw/scorer): 3000-6800/22000 RPM
• Saw blade diameter (circular saw/scorer): 6-5/8″/1-27/32″ (168/47mm)
• Angular range: 0° – 45°
• Cutting depth: 0″ – 2-7/16″ (0-62mm)
• Max. cutting depth at 45°: 1-3/4″ (45mm)
• Dust extraction connection diameter: 1-1/16″ / 1-7/16″ (27/36mm)
• Cable length: 13.12′ (4m)
• Weight: 13.23 lb (6kg)

Includes

• 42 tooth Wood Fine Cut Saw Blade
• Sight window
• Scoring saw blade DIA 47×2.5×6.35 T1
• 5mm hex key
• Systainer Sys³ M 437
